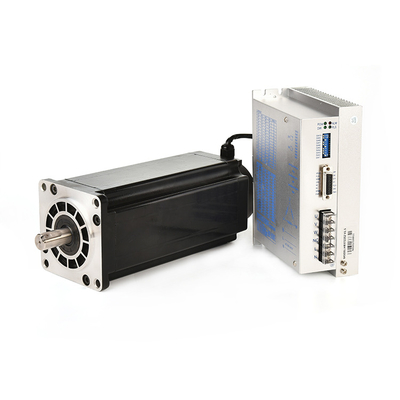

High quality power 110mm 3 phase nema42 embroidery machine stepper motor nema 42 stepper motor

1 piece
MOQ
High quality power 110mm 3 phase nema42 embroidery machine stepper motor nema 42 stepper motor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 3months-1year
Model Number: nema 42 Stepper Motor
Phase: 3
Type: Hybrid
Current / Phase: 5, 5.0A
Product name: nema 42 Stepper Motor
Key words: 3 Phase nema 42 Stepper Motor
Holding Torque: 25
Length: 285
Voltage: 14.5
Resistance/Phase: 2.9
Inductance: 27
Rotor Inertia: 24300
Weight: 15
Basis informatie
Model Number: nema 42 Stepper Motor
Betalen & Verzenden Algemene voorwaarden
Packaging Details: standard export cartons for nema 42 Stepper Motor
Supply Ability: 100000 Piece/Pieces per Month
Productomschrijving
Product Description
GENERAL SPECIFICATIONS
Item
Specifications
Step Angle Accuracy
±5%
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80C Max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100MQMin 500VDC
Dielectric Strength
500V AC 1minute
Allowable Radial Load
0.02mm Max. (450g load)
Allowable Thrust Load
0.08mm Max. (450g load)
Dimension
Connections&Frequency-Torque Characteristice
Specifications
Model
Voltage
Current
Resistance
Inductance
Hold Torque
Rotor Inertia
Weight
Length
unit
VDC
A
Ω
mH
N.m
g-cm2
kg
mm
110BYG350-134
80-200
3.0
3.15
17
8
6000
6.5
134
110BYG350-185
80-200
5.0
2.14
17.5
16
13560
9
185
110BYG350-219
80-200
5.2
1.93
23
20
17400
11.1
220
110BYG350-285
80-200
5.0
2.9
27
25
20000
13
285
Motor Applications
Textile Machinery
Medical Equipment
CNC Machinery
3D Printer
Automation Equipment
OEM
Company Profile
Changzhou Emtech Intelligent Co.,Ltd specialized in manufacturing various types of stepper motor,servo motor and motor driver. With 20 years experience in this field, our product already get certificate of CE and RoHS.We have five production line and with production capacity more than 1 million motors per year.
Our Company offers many major series of products: Hybrid Stepper motors, Closed Loop Stepper Motor,Linear Stepper Motor, Brushless DC motor, DC Brush motor, Motor Driver, Geared Motor,Brake Motor, Servo Motor with different power and so on...
Innovation makes our product competitive. Our R&D team with many years of experience in application engineering, design engineering in different field equipment.This support us to provide product to meet different field,such as industry of automation,medical and health care equipment, 3D printer machines, packing devices, information technology, household appliance products.
Adhering to the concept of Quality first,Customer foremost. We are looking forward to cooperate with customers from all walks oflife.
Why Choose Us
Q:Are you factory?
A:Yes, we are facotry, and we produce stepper motor for more then 20 years in China.

Q: How to select the motor model?
A: Before purchasing,please contact us to confirm the model no and specification to avoid any misunderstanding.

Q: What’s your warranty?
A:Our warranty is 12 months from shipment out of factory.

Q:What is your payment way?
A: Sample fee should be fully paid before production,for bulk order,50% advance is needed and balance after copy of B/L..

Q:How can we know the product quality?
A: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough
information in the product page.
