Thuis /Producten/Hybride stappenmotor/Nema42 Step Motor/1.2 Degree 3 Phase Hybrid Stepper Motor Nema42 /220v Stepper Motor 20NM 110BYG350D

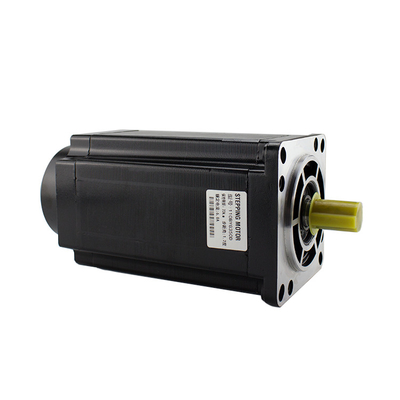

Nema42 Step Motor/1.2 Degree 3 Phase Hybrid Stepper Motor Nema42 /220v Stepper Motor 20NM 110BYG350D

1 set
MOQ
Nema42 Step Motor/1.2 Degree 3 Phase Hybrid Stepper Motor Nema42 /220v Stepper Motor 20NM 110BYG350D
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 3 months
Model Number: 110BYG350D
Phase: 3
Type: Hybrid
Current / Phase: 7A
20NM Weight:: 11kg
Basis informatie
Model Number: 110BYG350D
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Cardboard box
Productomschrijving
Product Description
Digital display stepper drive model parameters
Digital display stepper drive model parameters
Model
Phase number
Input voltage
Segmentation
Current
Signal voltage
Adaptive motor
HQ3522
Three
110V-220V
200-60000
1.0A-8.0A
5V-24V
NEMA 42
DIP stepping driver model parameters
DIP stepping driver model parameters
Model
Phase number
Input voltage
Segmentation
Current
Signal voltage
Adaptive motor
DM3522
Three
220VAC
400-60000
2.2A-8.0A
5V-24V
NEMA 42 8 N.m\12 N.m
DM3522-A
Three
110-220VAC
400-30000
3.2A-8.0A
5V-24V
NEMA 42 16 N.m\20 N.m
DM3522-B
Three
220VAC
400-60000
3.2A-8.0A
5V-24V
NEMA 42 8 N.m\12 N.m
DM3522-C
Three
110-220VAC
400-30000
2.8A-10.0A
5V-24V
NEMA 42 16 N.m\20 N.m\24 N.m
Stepper motor model parameters
Model
Step angle (°)
Holding torque（N.m）
Phase current（A）
Phase inductance（mH）
Phase resistance（Ω）
Rotor inertia（g.㎡）
Weight（Kg）
Motor length（mm）
Shaft diameter（mm）
110BYG350A
1.2
8
4.5
11.9
1
8.6
5.5
135
19
110BYG350B
1.2
12
5
11.5
0.76
11.9
7.1
161
19
110BYG350C
1.2
16
6
19
1.28
14.8
8.8
185
19
110BYG350D
1.2
20
6.5
22
1.24
19.8
11
220
19
110BYG350E
1.2
24
7
20
1.22
20.8
11
220
19

Powerful turbo cooling fan
Intelligent heat
dissipation extends life

The drive base adopts mature shovel (aluminum extrusion)
heat dissipation technology, coupled with precise
current control technology to greatly reduce the motor's heat,
and take measures to prevent overheating from the source.

Strong power and
stable torque

Three-phase sine wave magnetic field design,
with good dynamic response and excellent low-speed smoothness.
Very low torque ripple, low noise, smooth operation and no jitter.
Compared with the same period in the industry,
the motor torque is greater and the output is more stable.

Great moment
Small self-inductance

Responsiveness is good, it can be directly connected
to the load and run at low speed in the
near-blocking state, and can eliminate the system
error caused by the reduction gear.
