High Performance NEMA 17 48mm 1.8 Degree DC 1.5A High Torque CNC Hybrid Stepper Motors For 3D Printer Motor CNC Parts 17HS8401

5 Pieces
MOQ
$4.50(5 - 59 Pieces) $4.40(60 - 599 Pieces) $4.30(>=600 Pieces)
Prijs
High Performance NEMA 17 48mm 1.8 Degree DC 1.5A High Torque CNC Hybrid Stepper Motors For 3D Printer Motor CNC Parts 17HS8401
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 3months-1year
Model Number: 17HS8401
Phase: 2
Type: Hybrid
Current / Phase: DC 1.5A
Product name: Hybrid Stepper Motor
Motor Length: 48mm
Holding Torque: 450mN.m
Resistance/Phase: 2.0 Ohms
Phase Inductance: 2.8*(1±20%)mH/Phase
Positioning Torque: 37 mN.m REF.
Insulation resistance: ≥100 MΩ (DC 500V)
MOQ: 1 box
Weight: 2kg/box
Payment: Ali Trade Assurance
Certificering: CCC, ce, ISO, RoHS
Basis informatie
Certificering: CCC, ce, ISO, RoHS
Model Number: 17HS8401
Betalen & Verzenden Algemene voorwaarden
Packaging Details: cusomized packages, carton box with foam
Productomschrijving
Specification
Model Number
17HS8401
Phase
2
Type
Hybrid
Motor Length
48mm
Holding Torque
450mN.m
Step Angle(degrees)
1.8°±0.09°
Rated Current
DC 1.5A/Phase
Phase Inductance
2.8*(1±20%)mH/Phase
Positioning Torque
37 mN.m REF.
Insulation resistance
≥100 MΩ (DC 500V)
MOQ
1 box
Weight
2kg/box
Payment
Ali Trade Assurance
High Performance Nema 17 48mm 1.8 Degrees Dc 1.5a High Torque Hybrid Cnc Stepper Motors for 3D Printer Motor CNC Parts

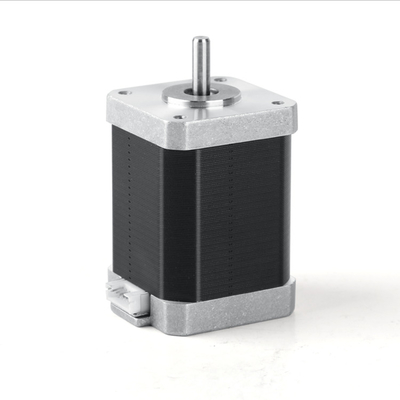

This Nema 17 stepper motor with size 42x42x48mm
Feature:High Precision, Low Inertia, Low Noise,Small Size,Mooth Movement

For customization please inform us as below:
1. Shaft length
2. Lead wire length
3. Voltage, Current, Torque
4. Connector
We will try to quote you as soon as possible, thanks!
