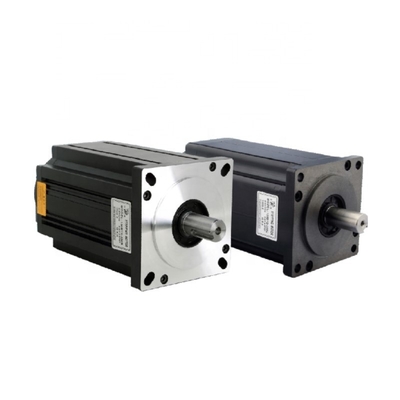

Industrial Hybrid CNC Sight 1hp Power Square Shape 1.8 Degree Per Shaft NEMA 52 Stepper Motor Kits Main Shaft CNC 3axis 130mm Stepper Motor step 35Nm

1.0 Pieces
MOQ
Industrial Hybrid CNC Sight 1hp Power Square Shape 1.8 Degree Per Shaft NEMA 52 Stepper Motor Kits Main Shaft CNC 3axis 130mm Stepper Motor step 35Nm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 3years
Model Number: BS130L180S-3004A
Phase: 2
Type: Hybrid
Current / Phase: 8A
Product name: Hybrid nema 52 stepping motor
Key words: 1.8 Degree Stepper Motor
Frame Size: 130*130mm
Motor length: 260mm
Application: Industrial Cnc
Holding Torque: 35Nm
Resistance: 4ohm
Inductance / Phase: 15mH
Shaft: 24mm
Voltage: 110v-220vAC
Certificering: CCC, ce, ISO, RoHS
Basis informatie
Certificering: CCC, ce, ISO, RoHS
Model Number: BS130L180S-3004A
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton boxes.
Supply Ability: 8000 Piece/Pieces per Day 130mm stepper Motor with driver
Productomschrijving
Product Information

Hello dear, welcome to Bobet :), the most professional,reliable and warm Group with factory who make industrial gear motors for years. Due to time difference we might not response to your inquiry in time but we won't keep you waiting so long,thank you!:)

Product description



>General performance

Product  attributes



 Hybrid Frame Industrial Hybrid Frame 1hp power Square shape 1.8 degree per step 35Nm nema 52 stepping motor Kits Key axle Cnc 3axis 130mm Stepper Motor

Features &

advantages

 High speed can be up to 3000rpm, big torque,high voltage 110vac to 220vac

Product application

industrial stepper motors control together by Modbus,such as PLC and DCS system



>Pictures



>Datasheet



         Model No      Step  Angle (°)  Voltage (V)  Current  (A)  Resistance (Ω)  Inductance (mH) Holding  Torque  (Kg.cm) Length (mm) Leads    Weight (Kg)
BS130L260S-4004 1.8 110 8 30 2 350 260 4 18

>Dimensions



>Videos



 The video is available on youtube and our official website,click here to watch.
