Box Labeling/Medical/pharmaceuical Autonics AH1K-S543 5-Phase Stepper Motors NEMA 17 Hollow Shaft Stepper Motor (Hollow Shaft Type)

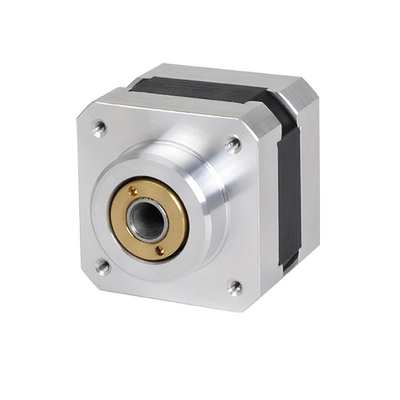

Autonics AH1K-S543 5-Phase Stepper Motors (Hollow Shaft Type)

5-Phase Stepper AHK Series5-Phase Stepper Motors (Hollow Shaft Type)

The AHK series hollow shaft type 5-phase stepper motors are compact and lightweight and offer high-speed, high-accuracy, and high torque motion control. The hollow shaft allows connection of ball-screws or TM-screws directly without couplings, so there is no resonance (vibration, noise) caused by couplings. The AHK series also offer great cost efficiency with its low, economical prices. The AHK series motors are available in various frame sizes

• Basic Step Angle [FULL/HALF] : 0.72º/0.36º
• Max. holding torque : 1.3kgf.cm
• Rotor Moment Of Inertia : 35g·cm²
• Winding Resistance : 1.7Ω
• Rated current : 0.75A/Phase
• Wire connection : Pentagon
• Protection structure : IP30
• Approval : CE

Data sheet

Motor length is measured without shaft.
Max. holding torque/Max. allowable torque is maintenance torque in stopping the motor when supply the rated current and is standard method for comparing the Performance of motors.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation
